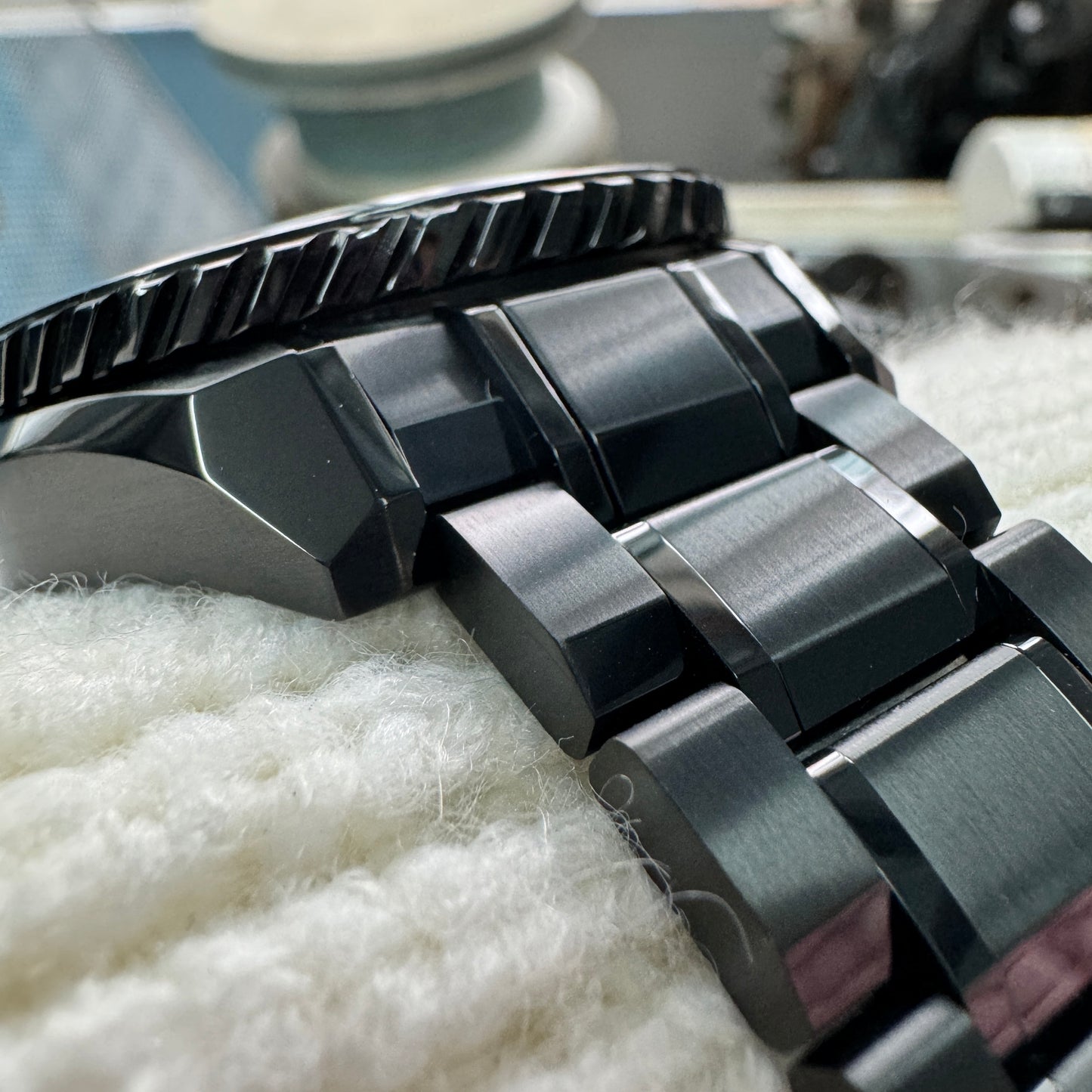

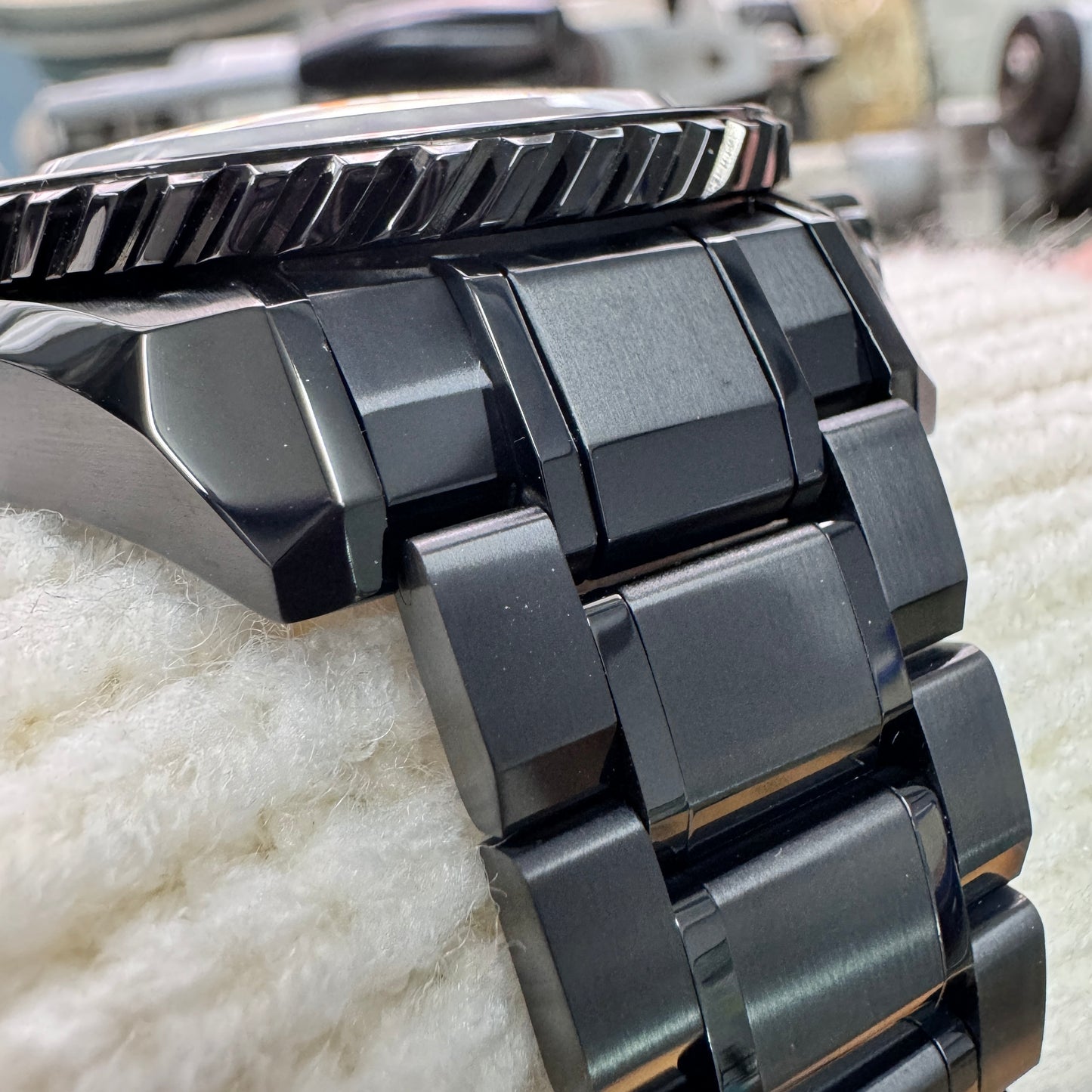

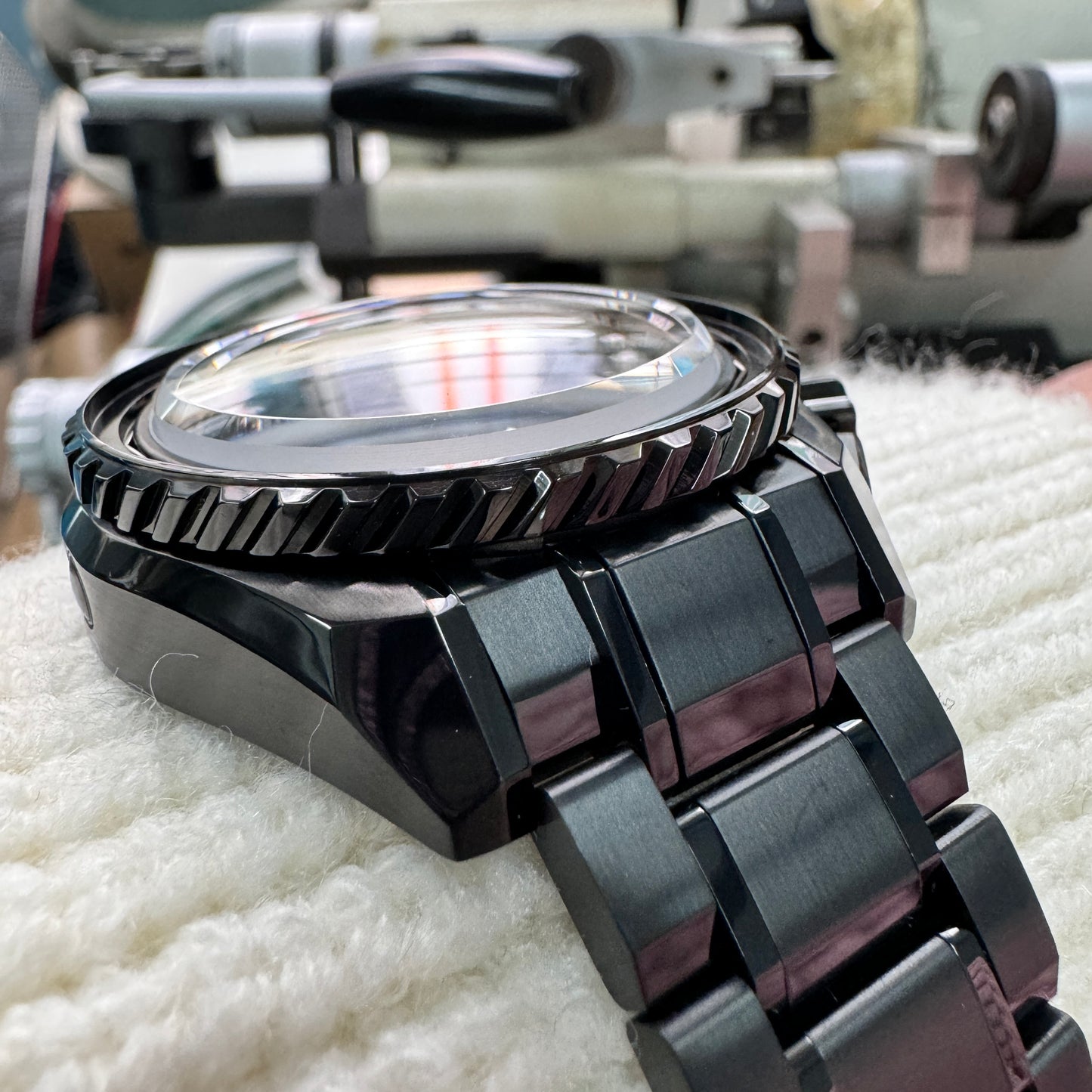

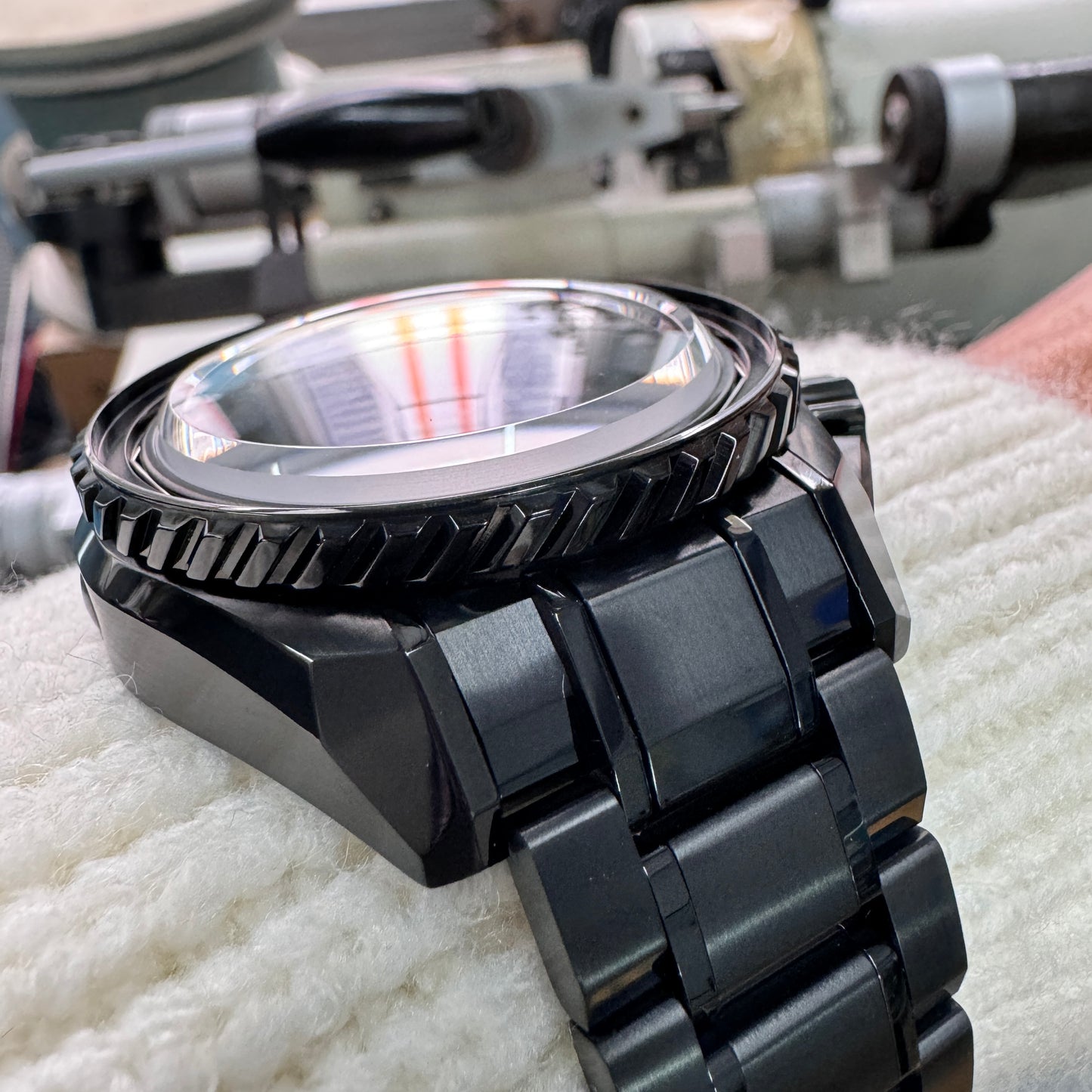

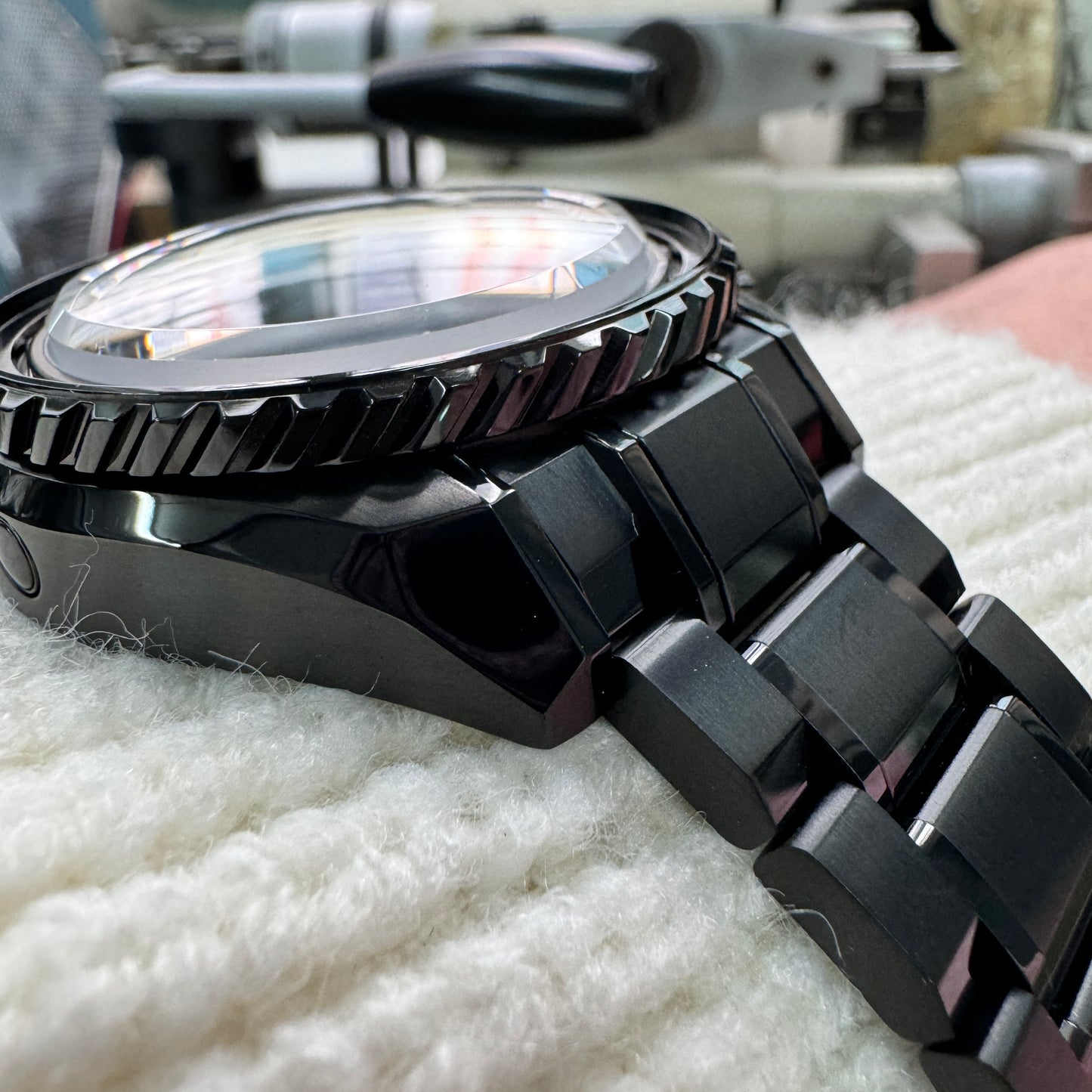

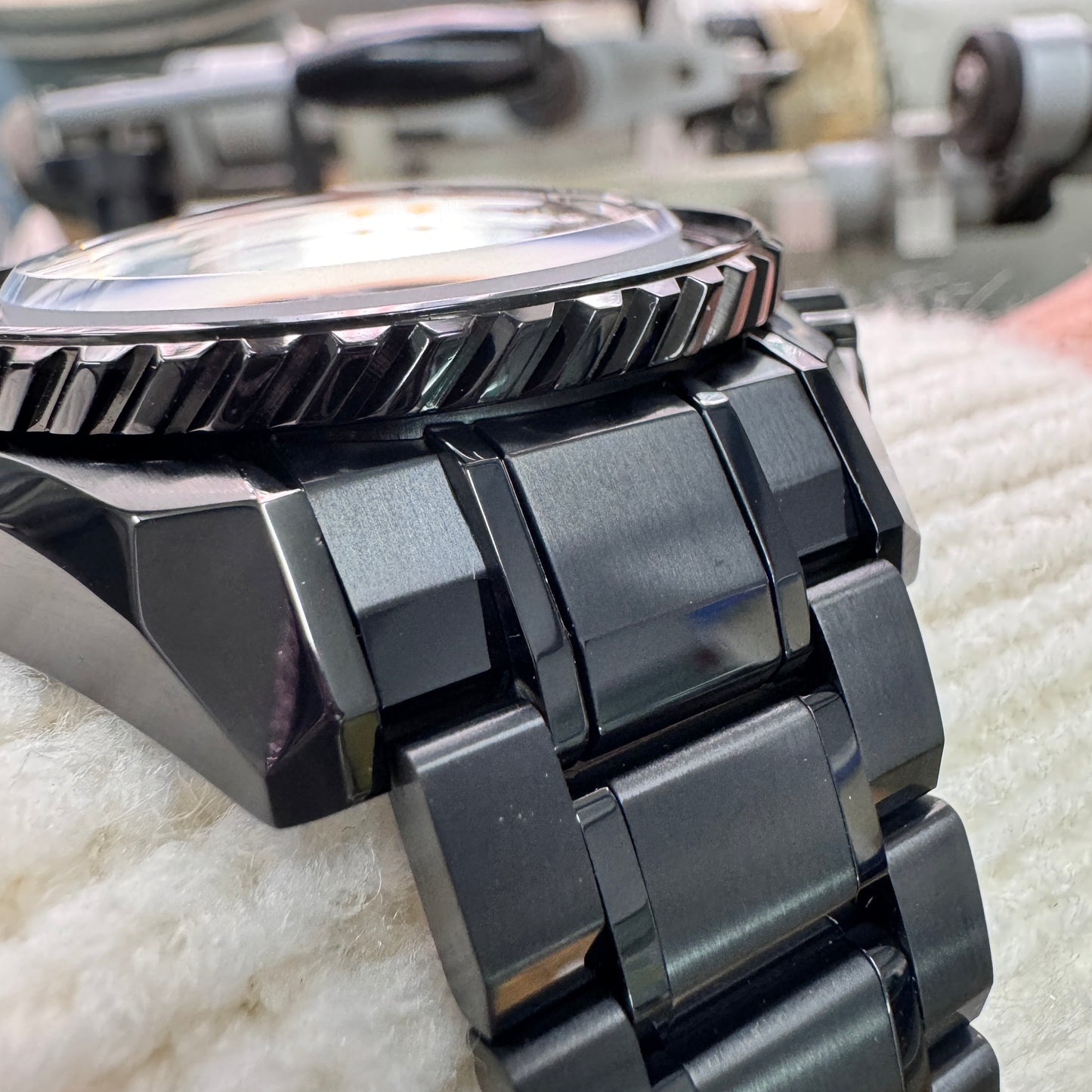

Dial Maker - X07 Custom Case PVD Black Bundle

$285.00 USD
$285.00 USD
Obral Habis
Biaya pengiriman dihitung saat checkout.

Specifications:

  • Case Specifications:
  • Stainless Steel
  • Color : PVD Black
  • Case Diameter: 43.0mm -Lug to Lug: 48.5mm
  • With Bezel Thickness: 12.5mm (without caseback)
  • Lug Width: 20mm
  • Water Resistance : 300 Meters
  • Helium release valve
  •  Bracelet in Brushed / Polished
  • Tapers from 20mm to 18mm
  • Clasp: Adjustable Clasp,No Logo

Included:

  • Top Double Domed Sapphire Crystal (Blue Anti-reflective Coating on Inner Surface)
  • 1 Crystal Gasket (more upon request)
  • Sapphire Caseback (With Blue Anti-Reflective "AR" Coating on Inner Surface)

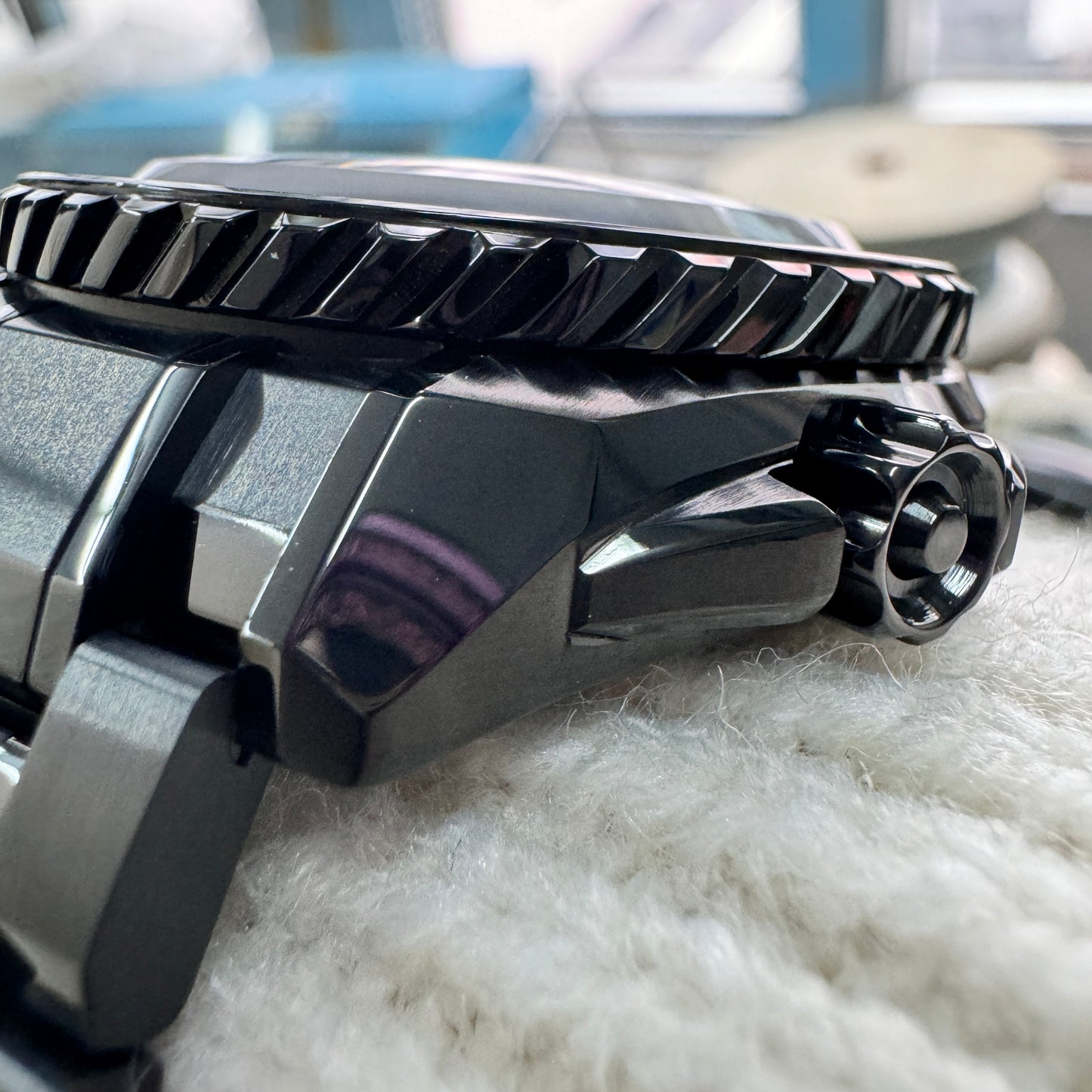

  • Crown (Screw-Down)

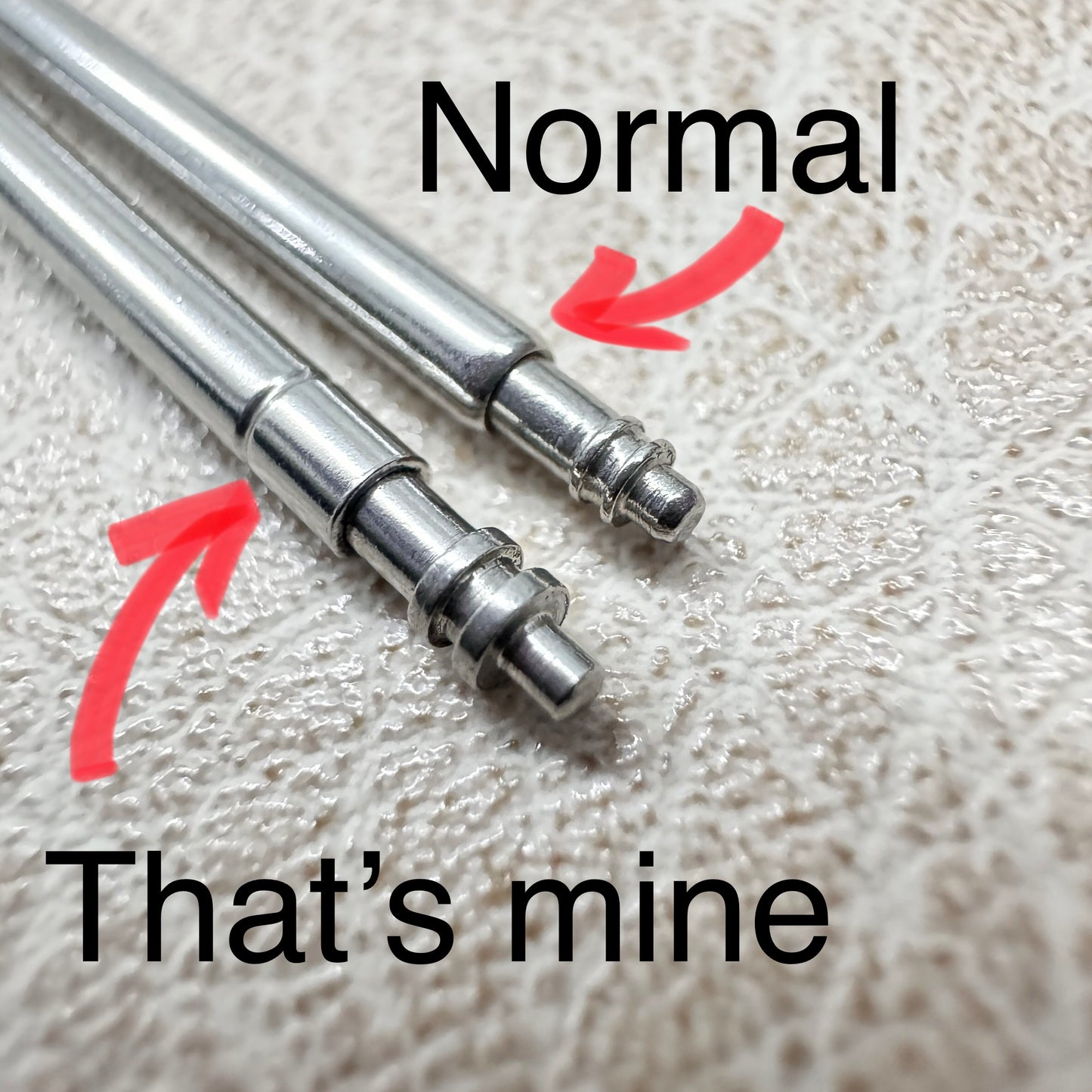

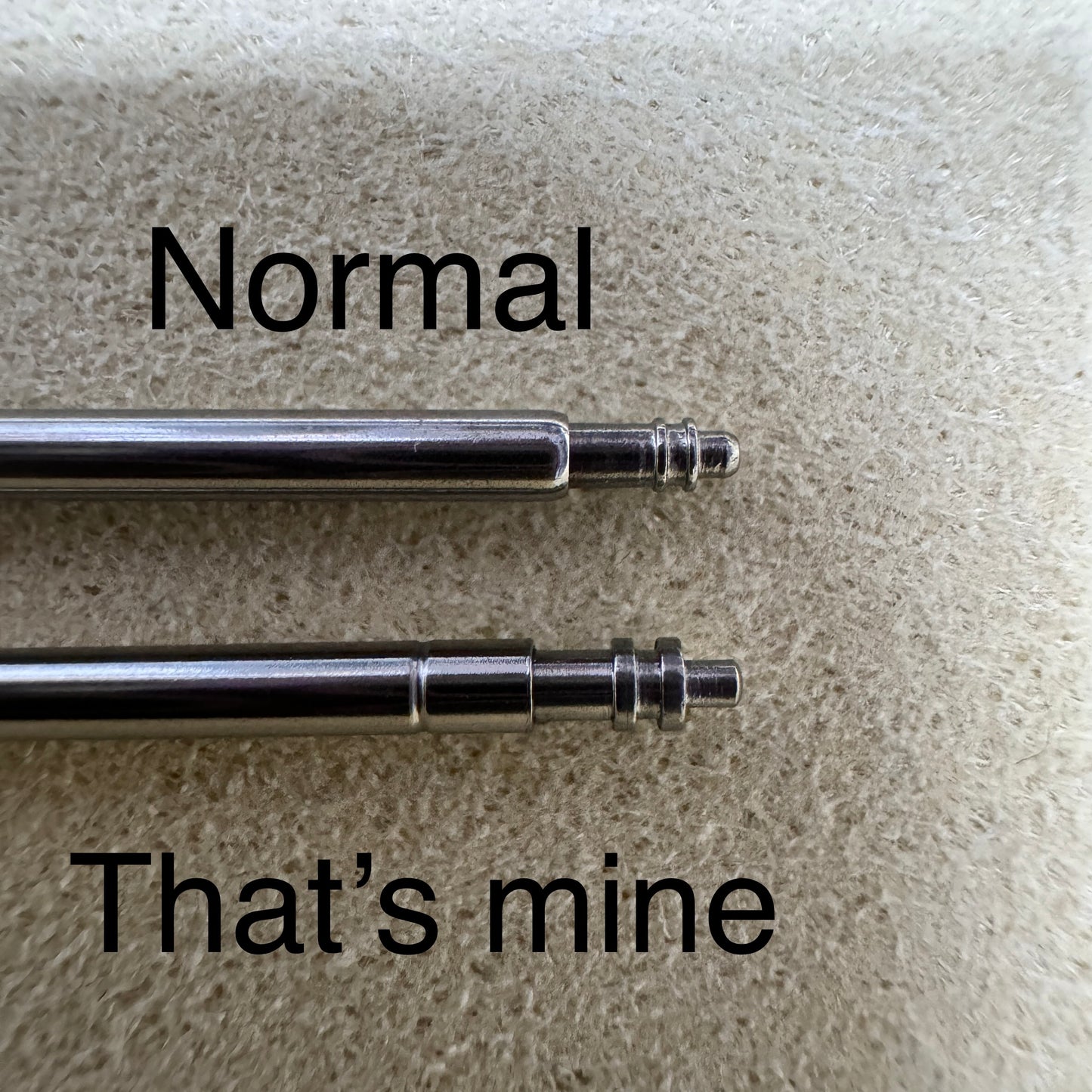

  • Pair of 20mm Spring bars
  •  Bracelet
  • Clasp:Adjustable Clasp,No Logo

Parts Compatibility:

  • Fits SKX007 Chapter Rings
  • Fits SKX007 Flat Bezel  Insert
  • 28.5mm Dials for Seiko NH Movements
  • For Movement Types: NH34 ,NH35, NH36, NH38, NH70/71/72

NOTE: Sapphire Crystal is provided UNINSTALLED so you may install your chapter ring first.                                                                                                                     Comes with .4mm spacer for between the dial and chapter ring (allowing the crown stem to become centered within the crown tube) and so that you can also use thicker (up to .8mm) custom made dials (without the spacer) such as those that are laser engraved with layers.
